| ■ Shape: |
| TYPE:1 |
TYPE:2 |
TYPE:3 |
TYPE:4 |
 |
 |
 |
 |
|
|

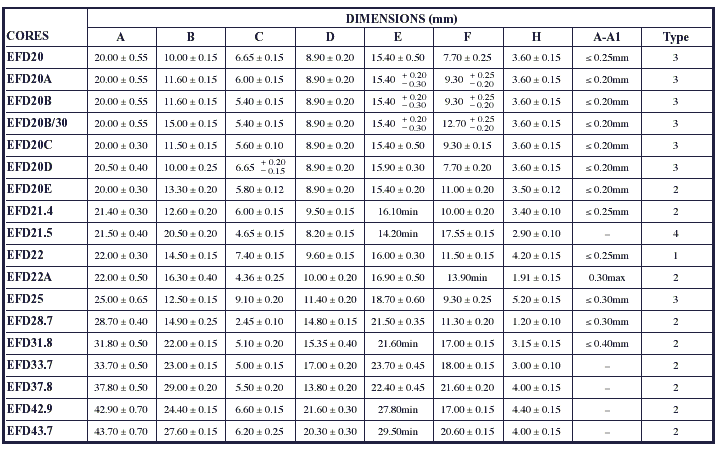

■ DIMENSIONS
|

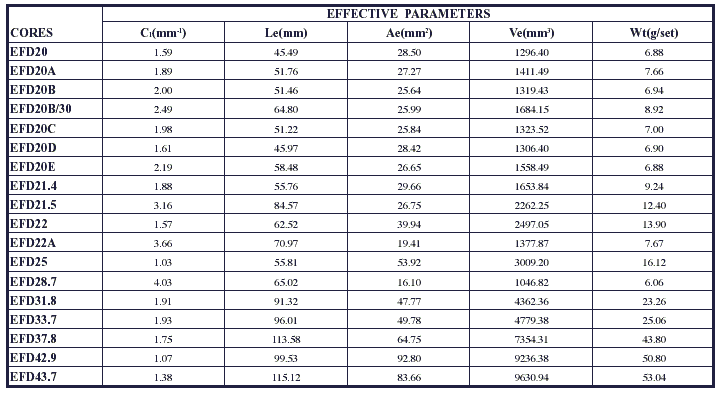

■ EFFECTIVE PARAMETERS
|
■ ELECTRICAL CHARACTERISTICS
|
|
|
■ Remark:
|
| |
| 1. |
AL Value Testing Condition : 10kHz, 50mV, 100Ts. If testing condition is different from ACME's, please specify upon request & ordering. |
| 2. |
Gapped core is available, please specify upon request & ordering. ACME's standard gapped core set is a combination of one gapped core and one ungapped core. If
gapping on both pcs to make a set is needed, please specify upon request & ordering.
|
| 3. |
L : Mirror Finished Lapping. Please specify upon request & ordering by adding "L" at the end of Core Size if you need. |
 Download EFD Cores pdf document
|
|
|
|
