Product Specifications

The multi-gap PQH cores in homogeneous or heterogeneous materials for PFC choke design can boost the power handling and exempt you from the overload limit of component design!

The composite PQH core half by ACME is assembled with automatic gluing process, making them easy as usual to be directly put into the process flow of wire-wound components.

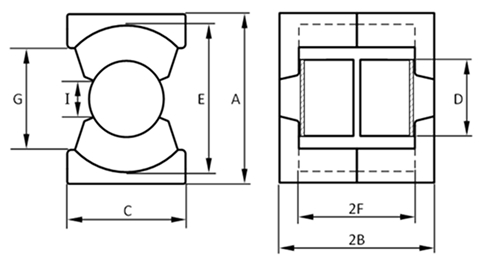

Housing Core								Center Rod Core
Core series	A	B*	C	E	F*	G typ.	I typ.	ØD	Available material grade
Core series	A	B*	C	E	F*	G typ.	I typ.	ØD	AS	AG	Power Ferrites
PQH20/8	20.50	4.00	14.00	18.00	2.00	12.40	4.50	8.70	✓	✓	✓
PQH26/20	26.50	10.20	19.00	22.50	6.00	16.00	6.00	12.00	✓	✓	✓
PQH26/25	26.50	12.38	19.00	22.50	8.05	16.00	6.00	12.00	✓	✓	✓
PQH32/25	32.00	12.50	22.00	27.50	8.10	20.00	6.00	13.45	✓	✓	✓
PQH35/35	35.10	17.40	26.00	32.00	12.50	24.00	6.00	14.35	✓	✓	✓
PQH40/30	40.64	15.40	28.04	36.80	10.10	29.00	6.60	15.00	✓	✓	✓
PQH50/50	50.00	25.00	32.00	44.00	18.10	32.50	8.60	20.00	✓	✓	✓

*Dimension B & F are adjustable under request.

For the multi-gap product design in heterogeneous core material, please click contact for further technical support.

Multi-gap product series in homogeneous core materials:

Multi-gap EEH-core product series

Number of central stick cores: 2 unit: mm

Core type	Dim. ID A/2B	A	B	C	D	E (min)	F	Spacer thickness	Center gap G3	Gapping size	AL(nH/N²)
Core type	Dim. ID A/2B	A	B	C	D	E (min)	F	Spacer thickness	Center gap G3	Gapping size	P453	P53	P61
EEH	42/42	42.00	21.00	19.60	11.95	30.00	15.15	0.40	~0.4	0.20	270	257	251
								0.60	~0.6	0.30	189	183	180
								1.00	~1.0	0.50	123	120	119
	55/55	55.15	27.50	20.70	16.95	38.00	18.90	0.40	~0.4	0.20	395	373	363
								0.60	~0.6	0.30	276	265	260
								1.00	~1.0	0.50	178	174	171
	65/65	65.00	32.50	26.90	19.65	44.20	22.50	0.60	~0.6	0.30	407	388	379
								1.00	~1.0	0.50	260	255	249
								1.50	~1.5	0.75	185	181	179

To proceed with the customized homogeneous multi-gap EE-core design, please click here

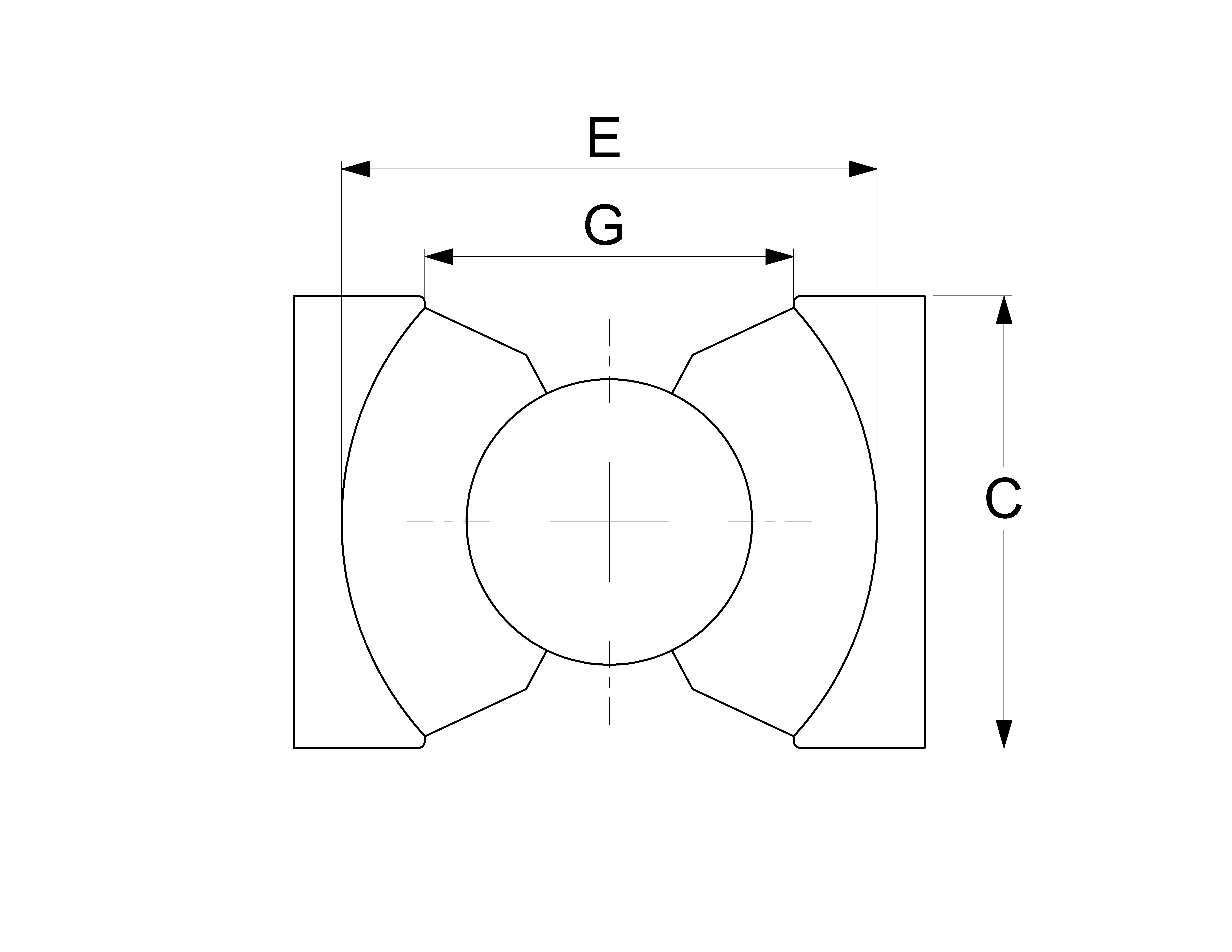

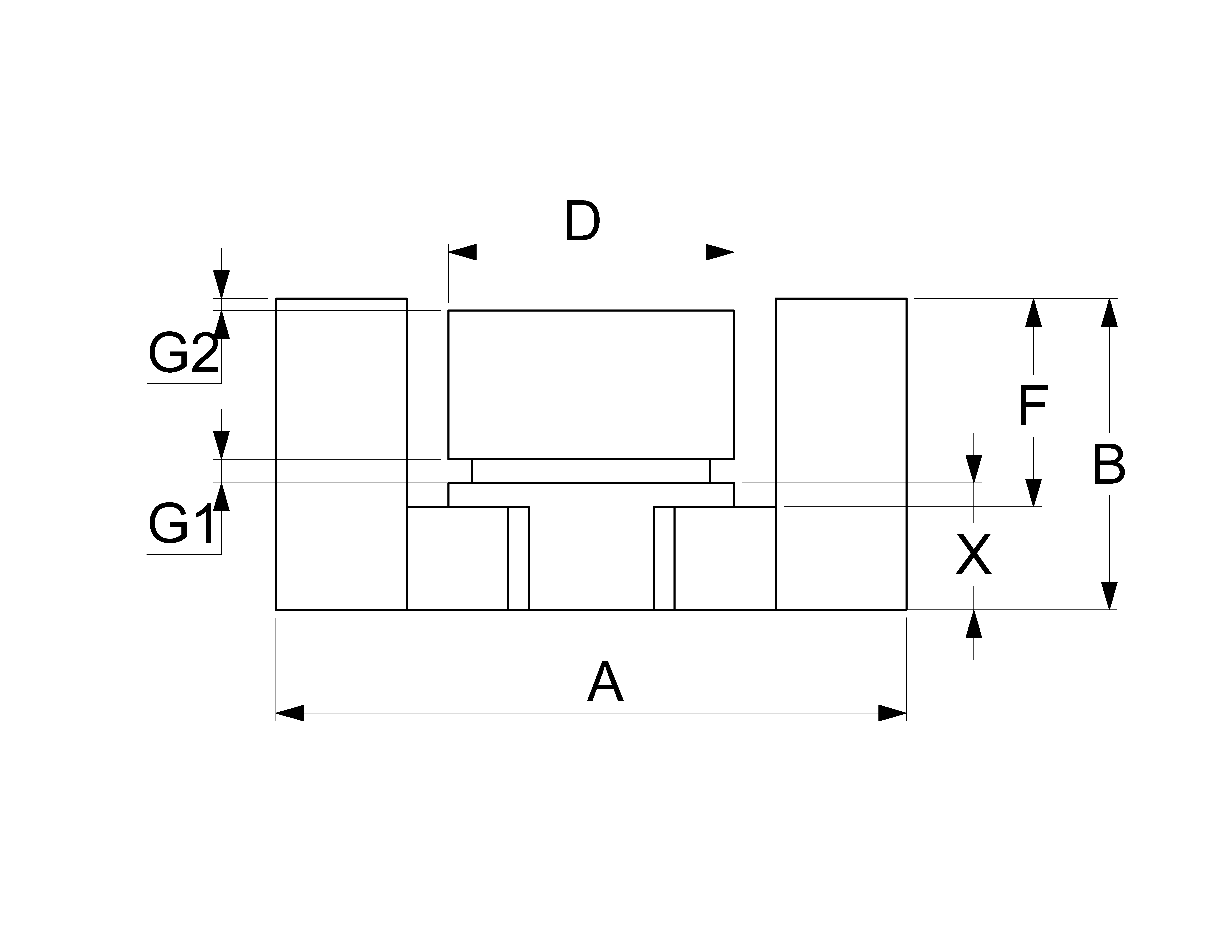

Multi-gap PQH-core product series

Number of central stick cores: 2 unit: mm

Core type	Dim. ID A/2B	A	B	C	D	E	F	G	I	Spacer thickness	Center gap G3	Gapping size	AL(nH/N²)
Core type	Dim. ID A/2B	A	B	C	D	E	F	G	I	Spacer thickness	Center gap G3	Gapping size	P453	P53	P61
PQH	30/30	30.00	15.00	23.00	13.30	25.50	11.70	20.70	6.00	0.40	~0.4	0.20	195	186	181
										0.60	~0.6	0.30	137	133	130
										1.00	~1.0	0.50	90	88	87
	40/40	40.50	20.00	28.04	15.00	36.80	14.85	29.00	6.60	0.40	~0.4	0.20	246	233	227
										0.60	~0.6	0.30	173	166	163
										1.00	~1.0	0.50	112	110	108
	50/50	50.00	25.00	32.00	20.00	44.00	18.10	32.50	8.60	0.60	~0.6	0.30	295	282	276
										1.00	~1.0	0.50	190	184	182
										1.50	~1.5	0.75	135	133	131

To proceed with the customized homogeneous multi-gap PQ-core design, please click here

Other customized core geometry and sizes are welcome.
