Multi-gap EE-core design

This Multi-Gap EE-Core Design Tool simplifies complex magnetic component engineering directly in your web browser. By entering the ideal core dimensions, gap conditions, and materials, the platform instantly calculates precise core factors, magnetic properties, and essential physical parameters. This automated process eliminates manual calculations to accelerate your magnetic design workflow.

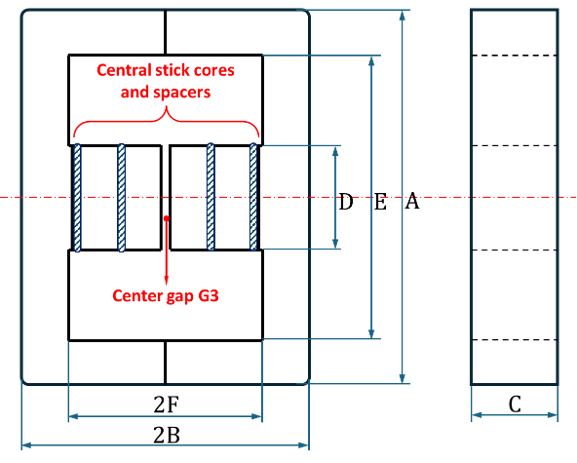

Input the core dimensions:

A	B	C	D	E	F

Input the multi-gap conditions:

1. Number of the central stick cores:

For symmetry concern, the number should be even.

2. The spacer thickness (mm):

3. The center gap G3 (mm):

Select the material grade:

Output the results:

Core factors:

C1 =

mm⁻¹

C2 =

mm⁻³

Effective core parameters:

Ae =

mm²

Le =

Ve =

mm³

Amin =

mm²

Magnetic properties:

μe =

AL =

nH/N²

Multi-gap EEH-core product series in homogeneous core materials

Number of central stick cores: 2 unit: mm
Core type	Dim. ID A/2B	A	B	C	D	E (min)	F	Spacer thickness	Center gap G3	Gapping size	AL(nH/N²)
Core type	Dim. ID A/2B	A	B	C	D	E (min)	F	Spacer thickness	Center gap G3	Gapping size	P453	P53	P61
EEH	42/42	42.00	21.00	19.60	11.95	30.00	15.15	0.40	~0.4	0.20	270	257	251
								0.60	~0.6	0.30	189	183	180
								1.00	~1.0	0.50	123	120	119
	55/55	55.15	27.50	20.70	16.95	38.00	18.90	0.40	~0.4	0.20	395	373	363
								0.60	~0.6	0.30	276	265	260
								1.00	~1.0	0.50	178	174	171
	65/65	65.00	32.50	26.90	19.65	44.20	22.50	0.60	~0.6	0.30	407	388	379
								1.00	~1.0	0.50	260	255	249
								1.50	~1.5	0.75	185	181	179

Reference:
IEC 60205: 2016 Calculation of the effective parameters of magnetic piece parts
